Efficient Irrigation for Every Field

SHENGU Center Pivot Systems deliver uniform water distribution, significant energy and labor savings, and proven reliability for large and rugged farmlands.

GET A FREE QUOTE
center pivot irrigation systems

What You Need To Know About SHENGU Irrigation

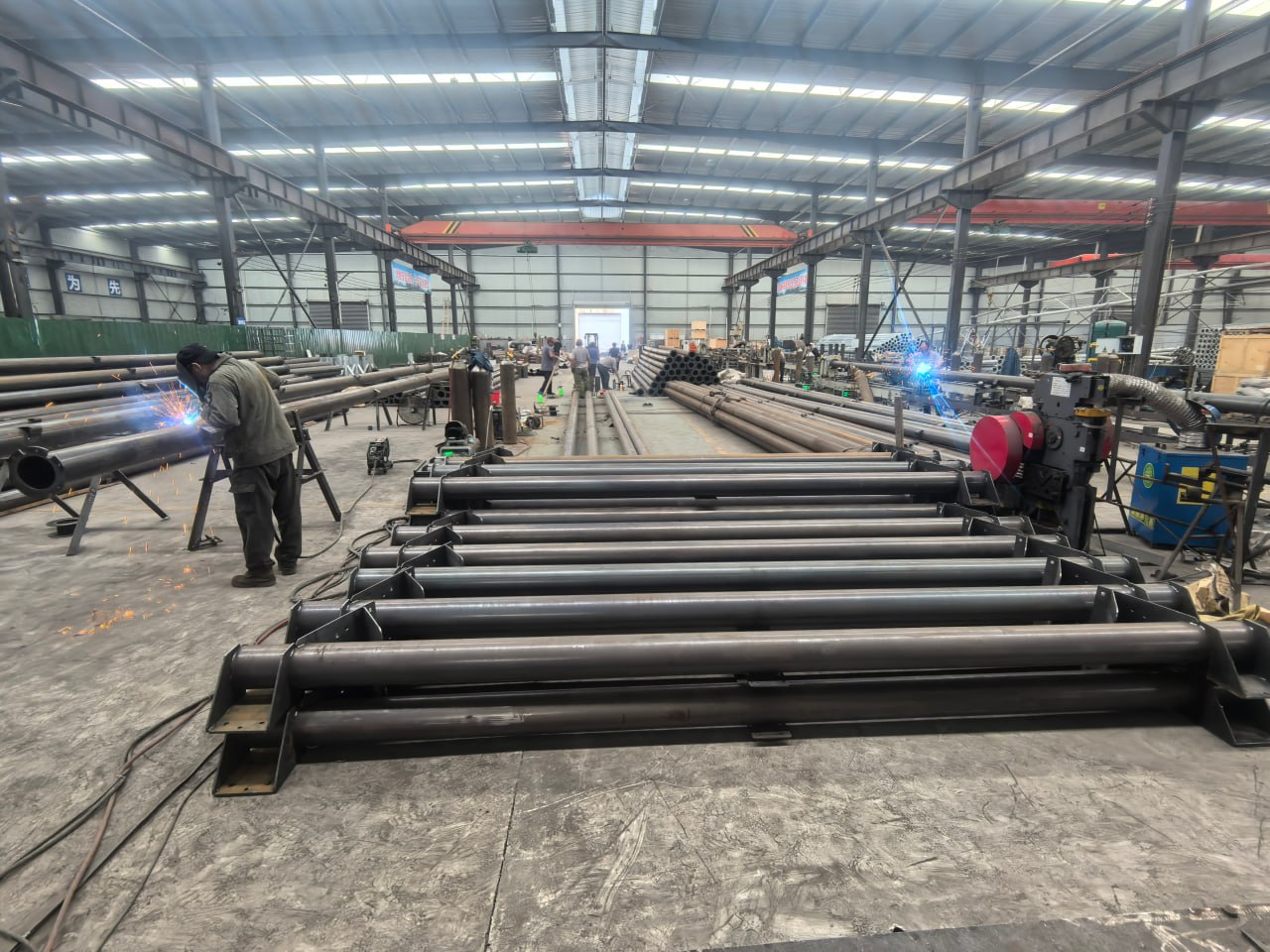

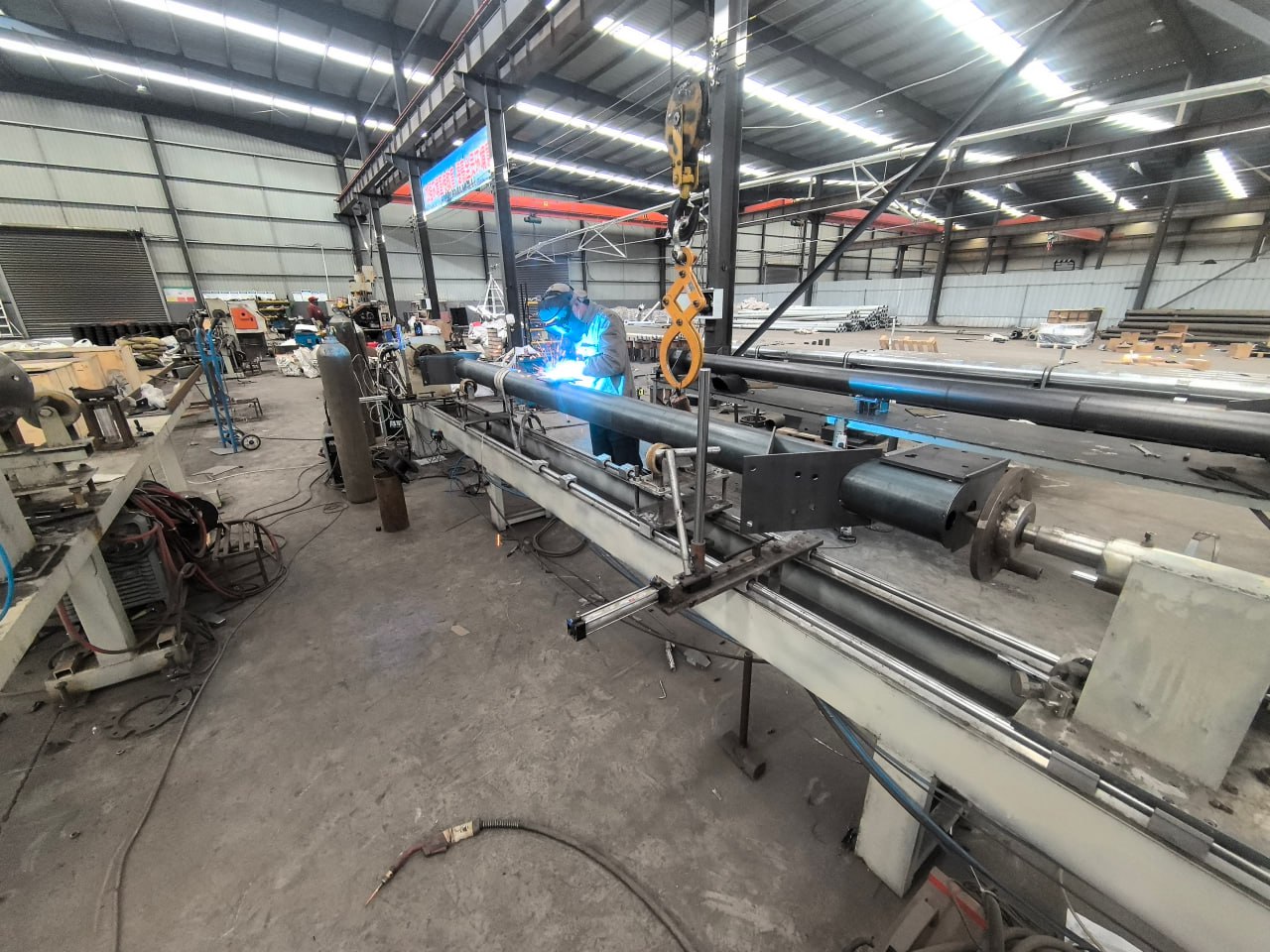

HEBEI SHENGU SPRINKLER IRRIGATION is a major producer and seller of sprinkler equipment and accessories, based in Handan City, Hebei Province, China. We specialize in high-efficiency center pivot sprinkler systems, designed to be durable, easy to manage, and ensure uniform water distribution across the entire field.

Our manufacturing processes for metal parts are certified to high standards, including ISO 9001 and ISO 14001.

30%+

Climbing Ability

90%+

Plot Utilization Rate

11

Global Agent Countries

Find out more

The Core of SHENGU Irrigation Performance

Our Center Pivot Systems integrate robust components with smart technology to deliver unparalleled efficiency and reliability.

Smart Remote Control

Enables continuous, automatic operation for long periods without manual intervention. Includes functions like start-stop control and travel speed adjustment.

Learn More

High-Efficiency Drive Train

Engineered for maximum torque based on soil and tire combinations. Features high-strength gear motors (95% efficiency) and gearboxes for all working conditions.

Learn More

Uniform Sprinkler Package

Neque aliquam vestibulum morbi blandit cursus risus at ultrices turpis nunc eget lorem.

Learn More

Rugged, Stable Structure

Features double-fixed connections between tower legs and pipelines for great stability. V-shaped towers and high-tensile strength manganese steel truss rods ensure durability in rough terrain.

Learn More

Customizable Coverage

Use different numbers and lengths of spans, overhangs, and cantilever options to achieve the exact irrigation radius required. Options for end spray guns increase irrigation area on square plots.

Learn More

Synchronization & Safety

Adjustment control mechanism provides synchronous control of each tower truck and safety protection devices. Collector rings prevent the electrical cable from twisting or breaking during rotation.

Learn More

Our Global Partners

SHENGU provides localized sales and support through a dedicated agent network across 11 key international regions.

China

Algeria

Egypt

Jordan

Brazil

Saudi Arabia

Iraq

Libya

Canada

Australia

Anatomy of the SHENGU Center Pivot

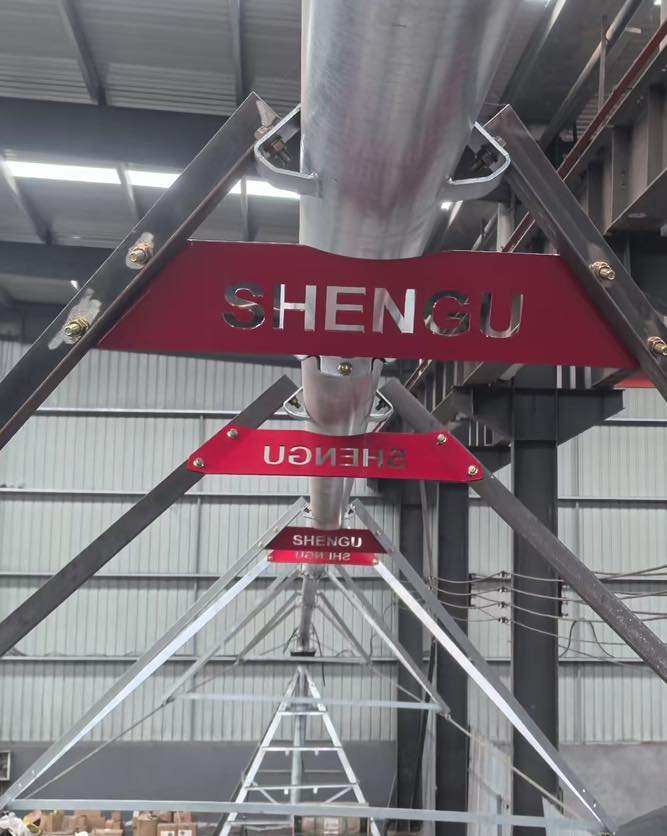

The SHENGU Center Pivot is a robust, large-scale mobile sprinkler system designed for durability and stability

The system is constructed from several main units:

Pivot Point: The rotation center, which can be fixed to concrete or mounted on four wheels for tow-type mobility. The collector ring here prevents the electrical cable from twisting as the machine rotates. Truss (Spans): The main unit made of branch pipes, triangular frames, and tie bars. Trusses are joined by ball joints and flexible pipe joints to handle uneven terrain. The truss rods are forged from manganese steel for high tensile strength. Tower: V-shaped tower trucks support the truss and are driven by high-strength gear motors. Sprinkler Package: Utilizes low-pressure sprinklers and integrated pressure regulators for uniform water delivery.

Maximum Length: Up to 800m.

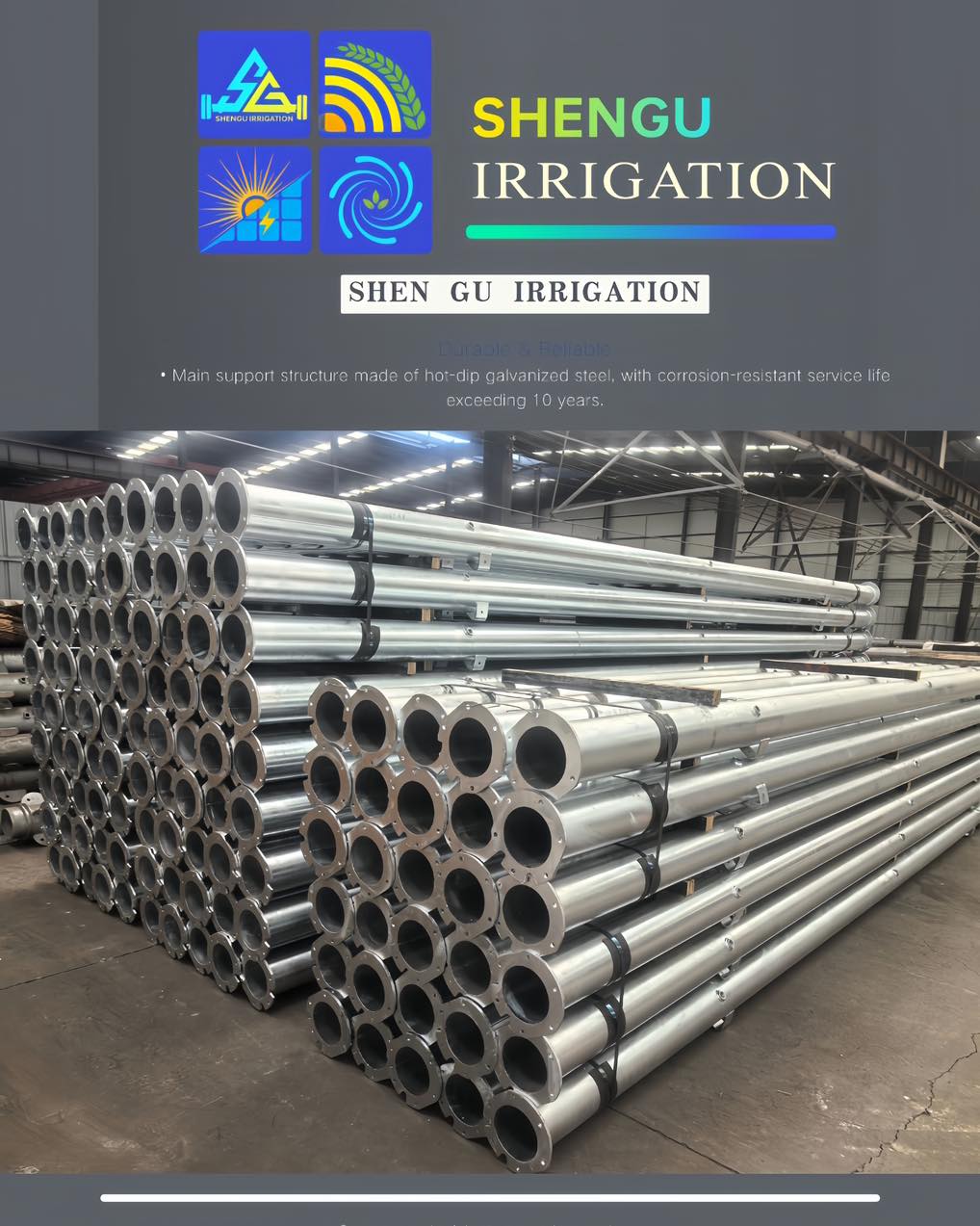

Pipe Diameters: Available in 141/168/203/254mm.

Unit Span Length: Standard lengths of 54.5m or 61.3m.

Climbing Capacity: Well-suited for rough terrain, with a climbing capacity of ≥30%.

Book appointment

Maximum Efficiency & Water Savings

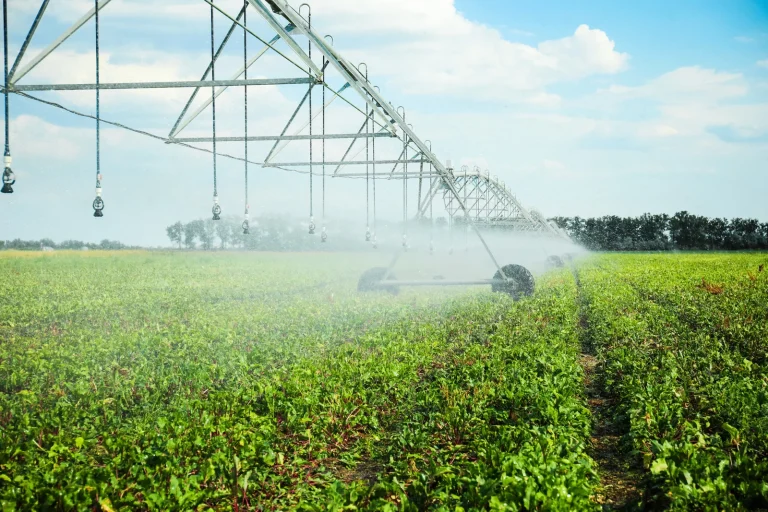

Compared with other forms of irrigation, the pivot sprinkler system offers several advantages. It is highly durable, easy to manage, and ensures uniform irrigation across the entire field. The system delivers a high irrigation rate while significantly reducing energy and labor requirements.

This makes it the optimal choice for irrigating large areas of farmland and is also well-suited for rough and uneven terrain.

LEARN ABOUT OUR QUALITY

Uniform Irrigation with high operation efficiency.

Adaptability to rough and uneven terrain with a strong climbing ability (≥30%).

Understand the water needs of plants to make appropriate adjustments for different growth stages.

Determine soil moisture content accurately to adjust the amount and frequency of irrigation appropriately.

Monitor and Adjust the system constantly by regularly checking plant growth and soil moisture.

Reduce Evaporation Losses by using measures like mulch and straw mulching.

Latest Irrigation Insights

Stay informed with best practices and technical details for maximizing crop health and water efficiency.

Water Quality: The Unsung Hero of Sprinkler Irrigation

Efficient sprinkler irrigation relies heavily on water quality to protect equipment and ensure optimal crop health. Subpar water causes nozzle wear, harms plants, and leads to soil salinization. Adhering to key standards, such as maintaining a pH between 5.5 and 8.5, keeping TDS under 2000 mg/L, and limiting sediment, guarantees long-term system performance.

Ready to Optimize Your Irrigation?

Transform your farm’s efficiency, save on energy and labor, and ensure the most uniform water distribution for your crops. Contact our sales and technology experts today to discuss a customized SHENGU center pivot system for your specific terrain and plot size.
